info@domain.comGas Jacketed Kettle
Main Specifications(Common agitator):
Model/Index | Power | Volume of pot | Capacity | Agitator | Discharge Type | Main Material |
QJC50 | 0.55kw | 50L | 25kgs/batch | Optional | Tilting | SUS304 SS |
QJC100 | 0.55kw | 100L | 50kgs/batch | Optional | Tilting | SUS304 SS |
QJC200 | 15kw | 200L | 100kgs/batch | Optional | Tilting | SUS304 SS |
QJC300 | 0.75kw | 300L | 150kgs/batch | Optional | Tilting | SUS304 SS |
QJC400 | 0.75kw | 400L | 200kgs/batch | Optional | Tilting | SUS304 SS |
QJC500 | 1.1kw | 500L | 250kgs/batch | Optional | Tilting | SUS304 SS |
QJC600 | 1.1kw | 600L | 300kgs/batch | Optional | Tilting | SUS304 SS |
QJC800 | 1.1kw | 800L | 400kgs/batch | Optional | Tilting | SUS304 SS |

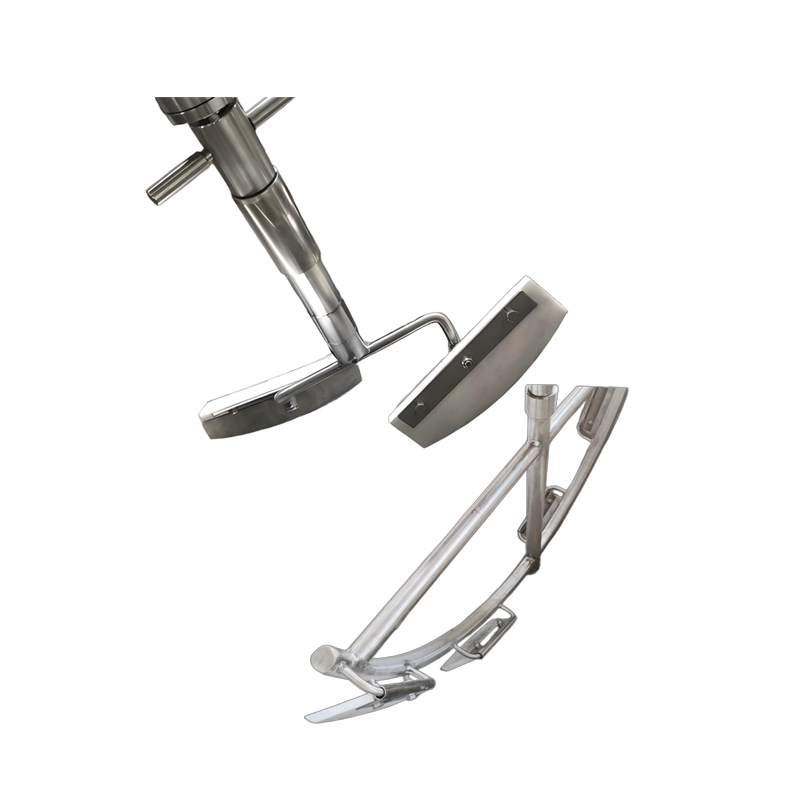

Main Specifications(Planetary agitator):
Model/Index | Power | Volume of pot | Capacity | Agitator | Discharge Type | Main Material |
QJC100X | 0.55kw | 100L | 50kgs/batch | Planetary | Tilting | SUS304 SS |
QJC200X | 0.55kw | 200L | 100kgs/batch | Planetary | Tilting | SUS304 SS |
QJC300X | 0.75kw | 300L | 150kgs/batch | Planetary | Tilting | SUS304 SS |
QJC400X | 0.75kw | 400L | 200kgs/batch | Planetary | Tilting | SUS304 SS |
QJC500X | 1.1kw | 500L | 250kgs/batch | Planetary | Tilting | SUS304 SS |
QJC600X | 1.1kw | 600L | 300kgs/batch | Planetary | Tilting | SUS304 SS |

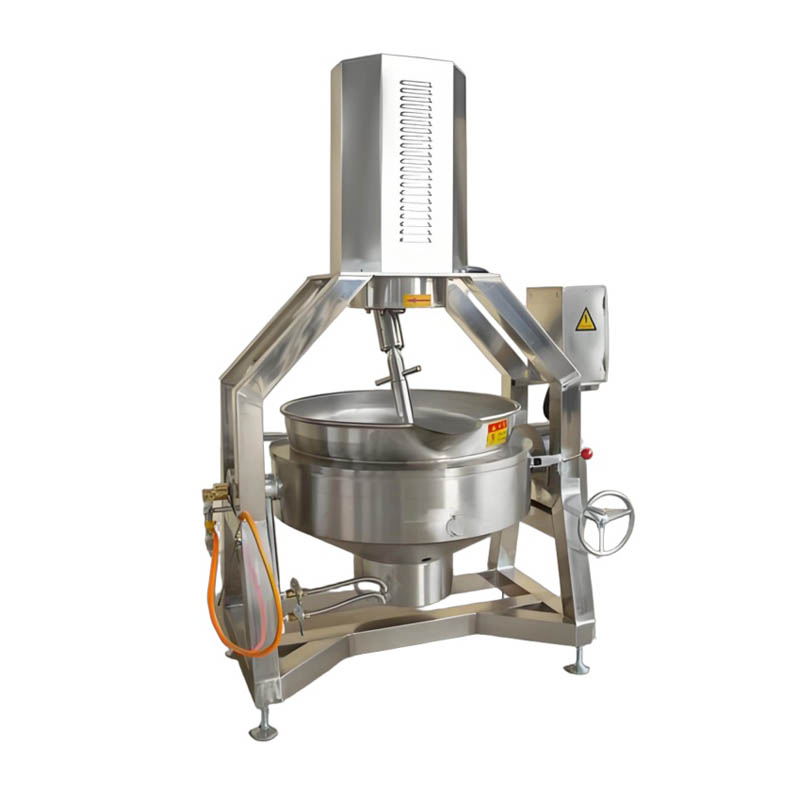

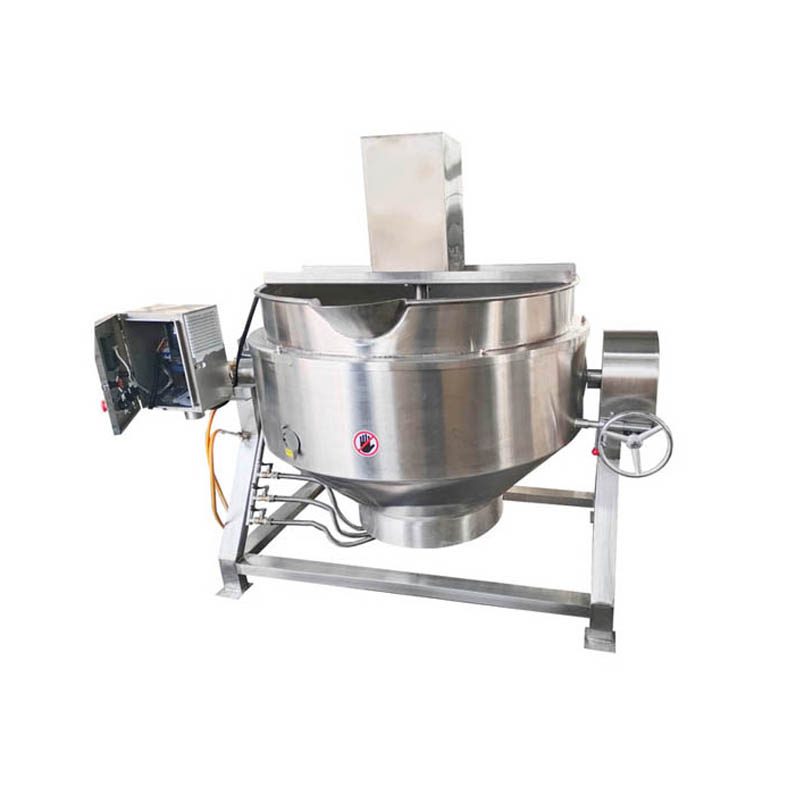

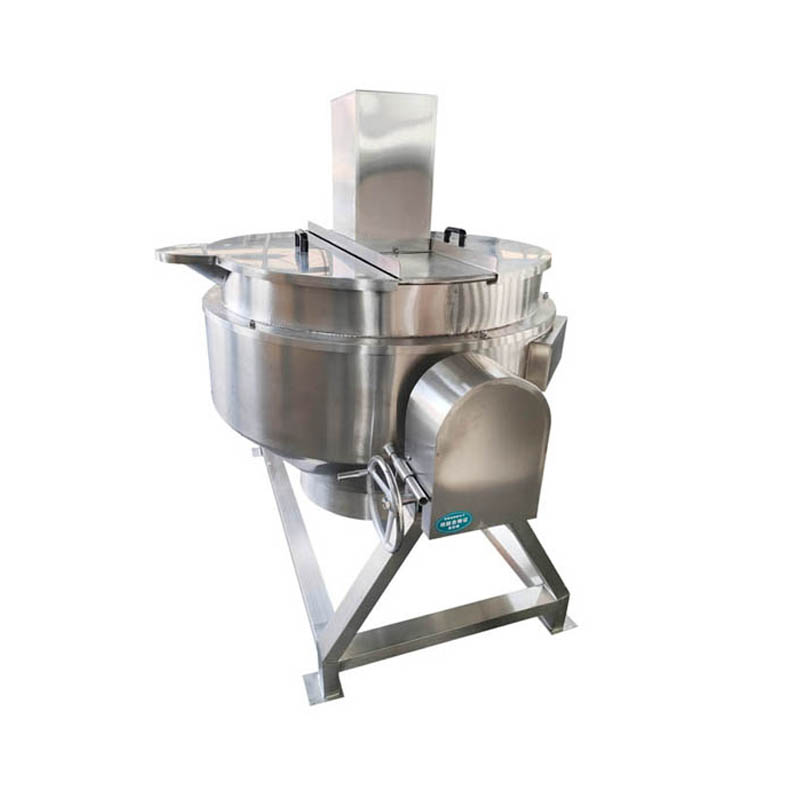

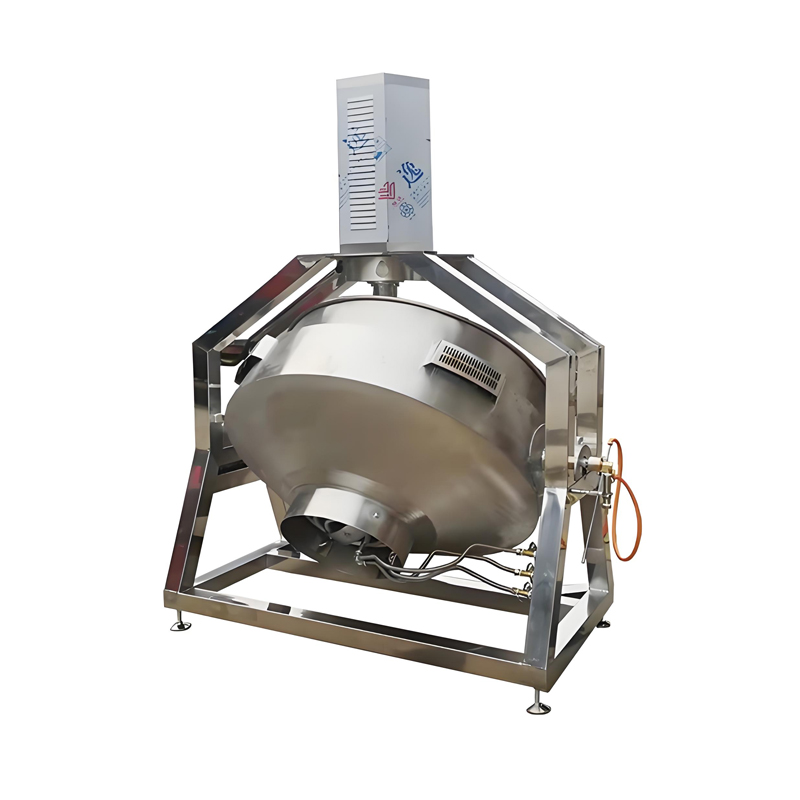

Introduction of gas double jacket pot:
Gas jacketed cooking pot is a commercial cooking equipment works with liquefied petroleum gas and natural gas as energy sources. It has stronger firepower, faster heating, and usually lower operating costs.

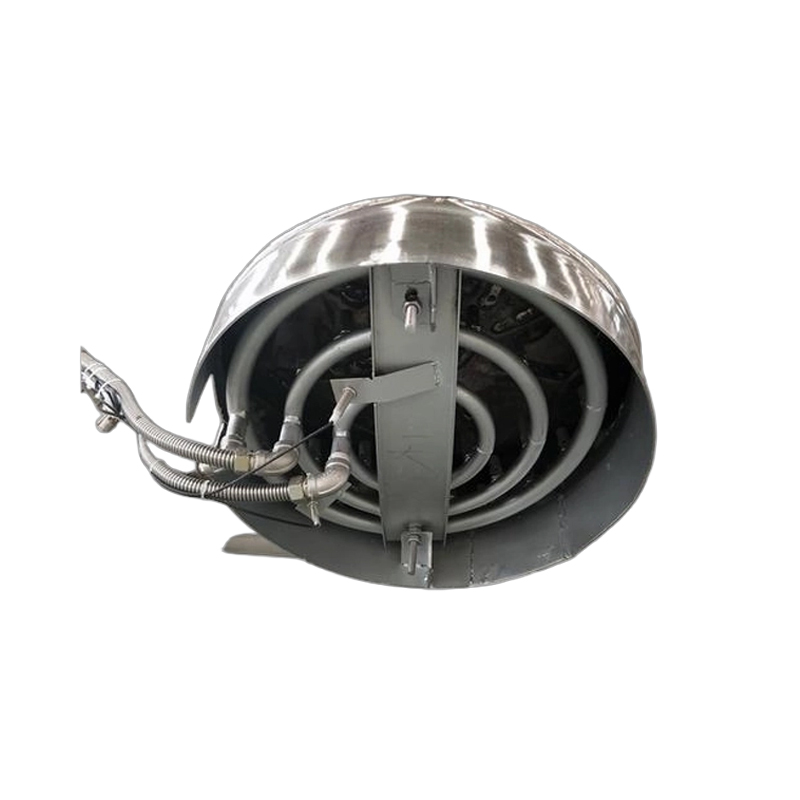

Working principle: The burner directly burns gas at the bottom of the pot, producing flames that directly heat the bottom of the pot, the firepower is very direct and rapid.
Material: Any part which contact with food is made of SUS304 or 316L stainless steel.
Ignition and control: Equipped with electronic spark ignition device, easy to operate.
Safety device: equipped with flameout protection device (to prevent gas leakage).
Discharge type: Most models are tilting type, which easily discharge the materials from the pot through a hand crank.
