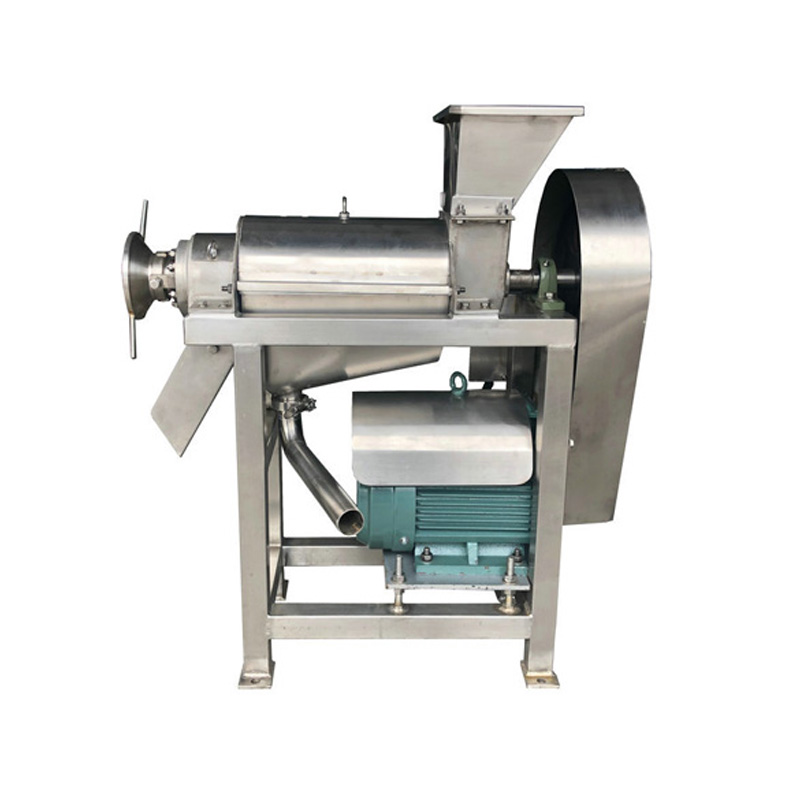

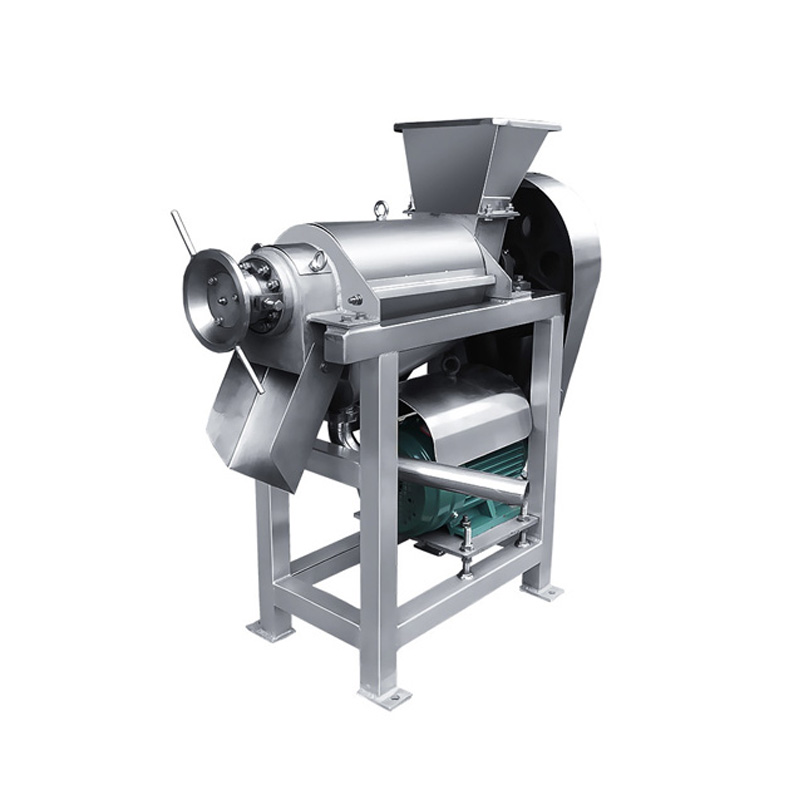

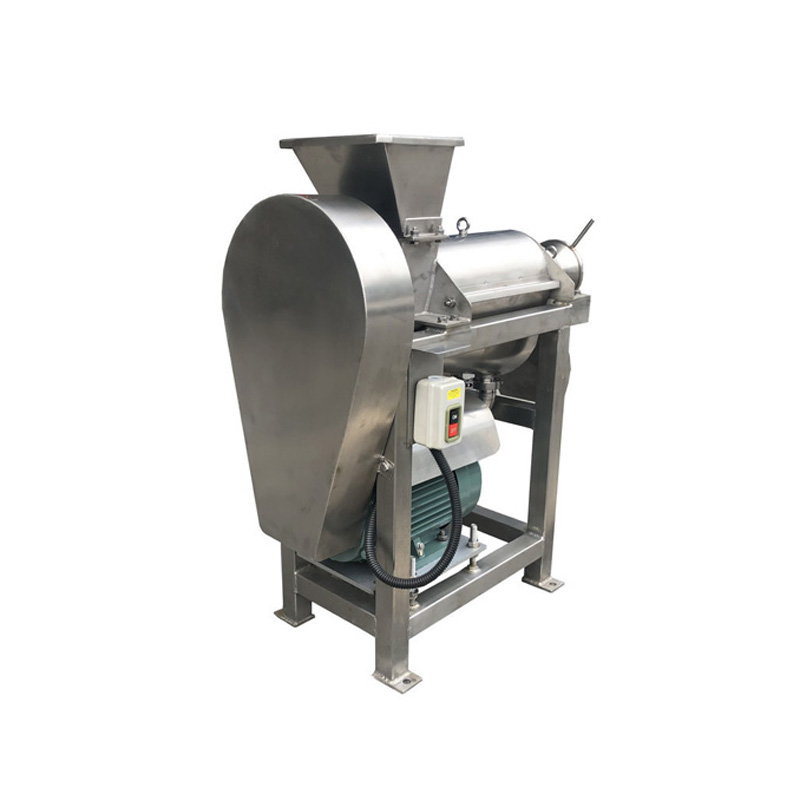

Main specifications of screw type juice extractor:

Working Principle:

After the materials enter the hopper, it moves forward under the push of the screw shaft. As the pitch gradually decreases and the root diameter gradually increases, the pressure on the material continues to rise. The juice is squeezed out of the hopper and filtered through the tube sieve, while the residue is discharged from the end.

Technical features:

Compression ratio control: By adjusting the volume ratio of the spiral groove at the inlet and outlet ends, the juice extraction efficiency can be optimized.

Low speed pressing: The speed is usually below 100rpm to reduce friction and heat generation, avoid nutrient oxidation, and preserve the original flavor and active ingredients of the juice.

Advantages:

High extraction rate, some fruits and vegetables having a juice extraction rate of over 85%.

Continuous production to meet the large-scale processing, with a max capacity of 1.5-2tons/hour.

Multi materials adaptation, available fruits, vegetables, Chinese medicinal herbs, and even distillers' grains and mushrooms waste residues.
